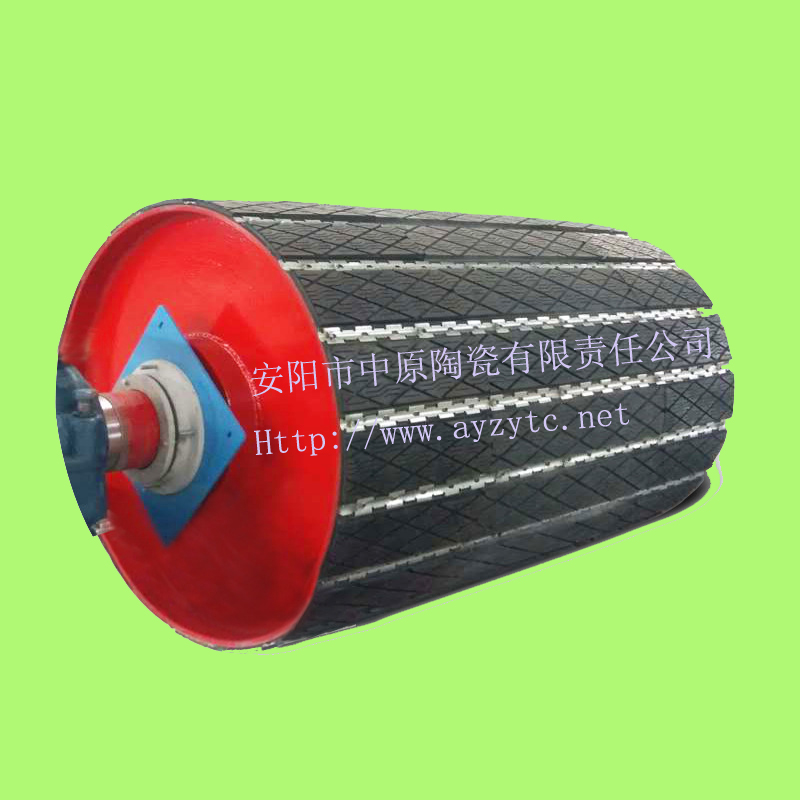

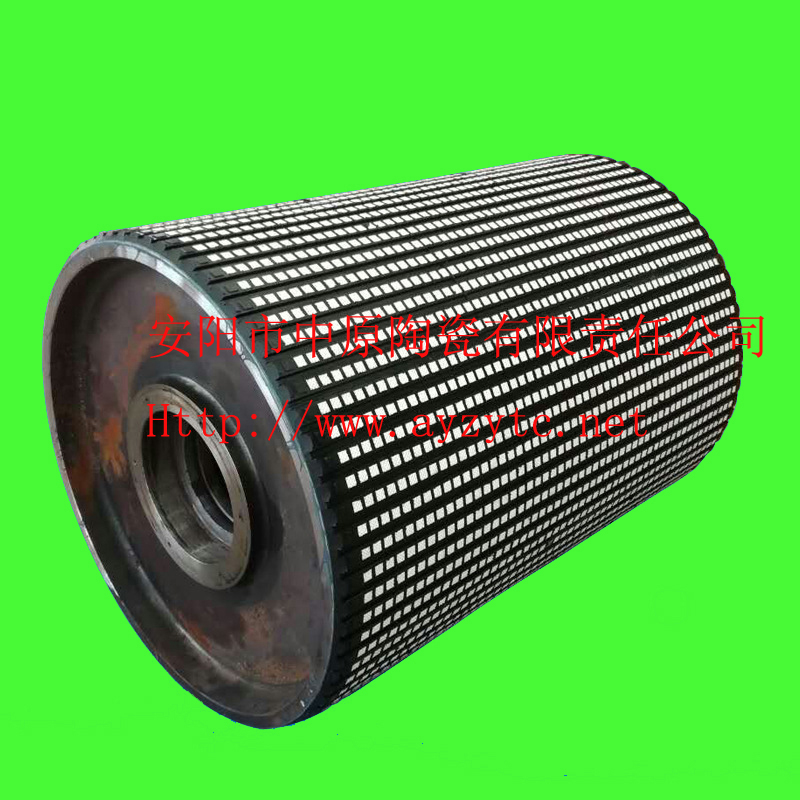

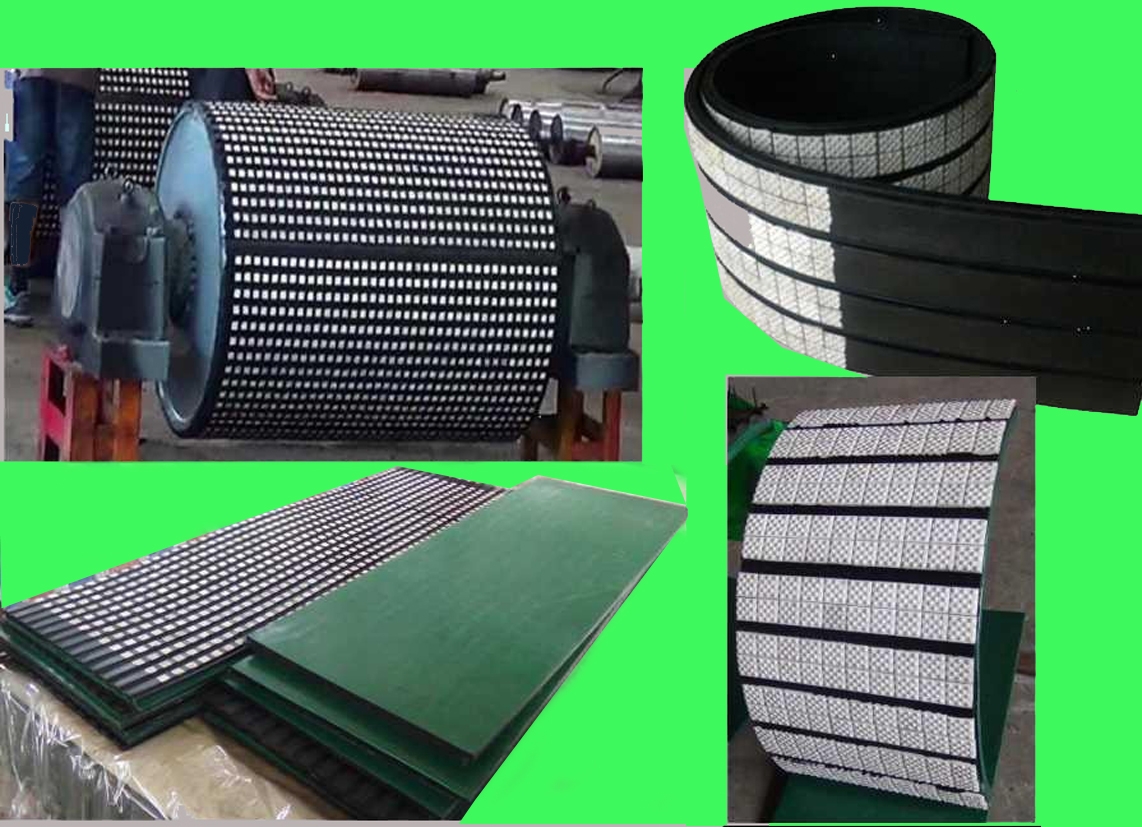

Rubber ceramic Pulley of belt conveyor
Product category: ceramic roller
Detail
   The high-quality rubber and ceramics, original embedded design and bonding technology used by Zhongyuan Ceramics Co., Ltd. make the rubber-ceramic rollers have super abrasion resistance and non-slip performance. Imported high-performance adhesives ensure the reliability of the liner. Advanced technology, reliable technology, fast and convenient construction. It can be constructed on site, reducing the intensity of disassembly and assembly of workers, avoiding potential safety hazards, saving downtime of enterprises and improving maintenance efficiency.
a. Anti-slip
The ceramic surface has uniform spherical protrusions, and the friction coefficient is three times that of the traditional rubber coating. When the back of the conveyor belt passes through, thousands of bumps can actively pull, preventing the conveyor belt from slipping and deviating, and improving the conveying efficiency.
b. Anti deviation
The main reason for the deviation of the traditional belt is the wear of the rubber cover and the accumulation of material. There is almost no wear on the surface of the rubber ceramic roller, and the occasional material will also be discharged through the groove, which will not cause the accumulation of material.
c. Protective belt
1. The bumps have no edges and corners design, and the sharp edges of the raised particles common to other ceramic coated products will not cause wear to the conveyor belt.
2. There is no relative sliding between the drum and the belt, which further protects the belt from abrasion;
3. Under the same load, it can reduce the tension of the belt and extend the life of the belt;
No buildup on the surface

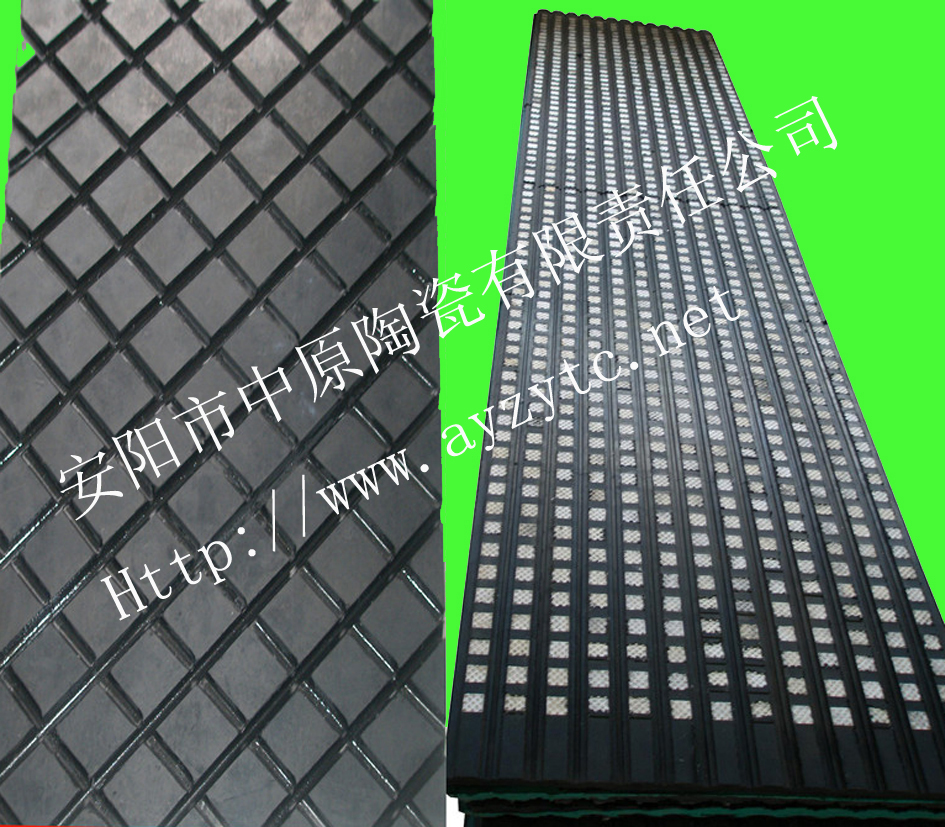

Each ceramic rubber board has grooves at a certain distance, which can make foreign matter (dust, dirt) on the drum be discharged along the groove, so that the drum has a unique self-cleaning function, which is especially suitable for wet working environments;
d. long life
The life is more than 3-5 times of ordinary rubber roller;
e. Easily cope with harsh conditions
Under the harsh conditions of slippery, muddy, long-distance transportation, the advantages of ceramic rollers are more obvious;
f. Impact resistance
The elasticity of the underlying rubber can have a good impact resistance;
g. Quick and easy installation
There is no need to unload the roller from the conveyor, which reduces the cost of disassembling and transporting the roller, saves time, and eliminates labor intensity and hidden safety hazards for workers. At the same time, the loss of other parts of the belt conveyor during the disassembly of the roller is also avoided.
